Processor
|
Intel Core i7-13620H, 10C (6P + 4E) / 16T, P-core 2.4 / 4.9GHz, E-core 1.8 / 3.6GHz, 24 MB
|
Graphics
|
Integrated Intel UHD Graphics
|
Chipset
|
Intel SoC Platform
|
Memory
|
1x 8 GB SO-DIMM DDR5-5200
|
Memory Slots
|
Two DDR5 SO-DIMM slots, dual-channel capable
|
Max Memory
|
Up to 32 GB DDR5-5200
|
Storage
|
512 GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
|
Storage Support
|
One drive, up to 1 TB M.2 2280 SSD
|
Card Reader
|
No card reader
|
Optical
|
None
|
Audio Chip
|
High Definition (HD) Audio, Realtek ALC233-CG codec
|
Speakers
|
3Wx2
|
Camera
|
5.0MP
|
Microphone
|
2x, Array
|
Power Supply
|
90W 89% Adapter
|
DESIGN
|
|
Display
|
23.8" FHD (1920x1080) IPS Anti-glare 250nits, 99% sRGB
|
Touchscreen
|
None
|
Keyboard
|
USB Calliope Keyboard, Black, Arabic
|
Mouse
|
USB Calliope Mouse, Black
|
Expansion Slots
|
Two M.2 slots (one for WLAN, one for SSD)
|
Durable
|
Yes
|
Stand
|
Monitor Stand
|
Mounting
|
None
|
Wireless Charger
|
None
|
Form Factor
|
AIO (23.8")
|
Dimensions (WxDxH)
|
540 x 192 x 431mm (21.25 x 7.56 x 16.97")
|
Weight
|
Around 6.0 kg (13.23 lb)
|
CONNECTIVITY
|
|
Ethernet
|
Integrated 100/1000M
|
WLAN + Bluetooth
|
Intel Wi-Fi 6 AX201, 802.11ax 2x2 + BT5.2
|

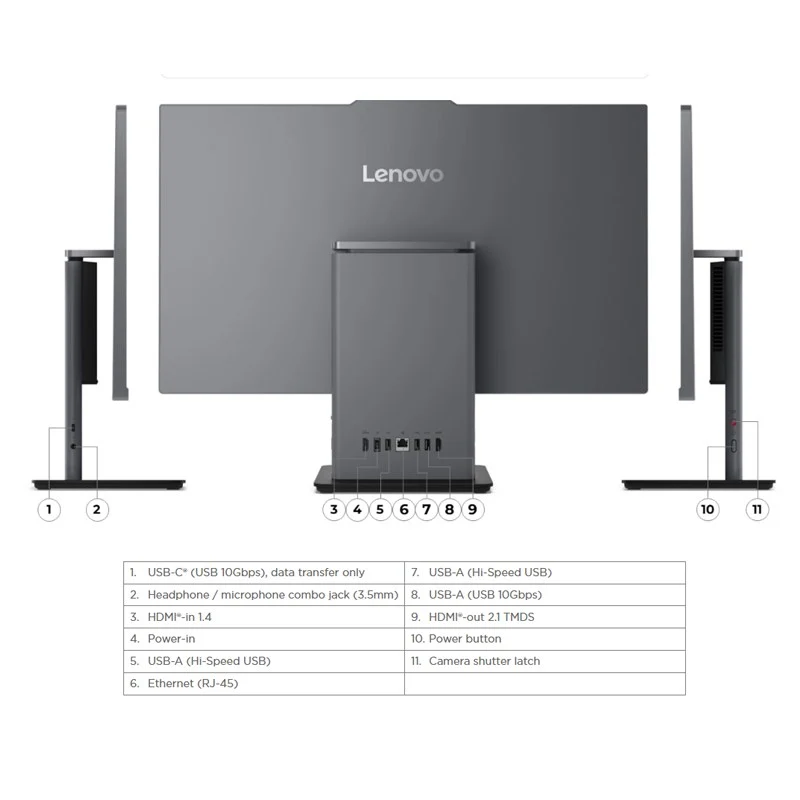

Rear Ports
|
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
|
|
2x USB-A (Hi-Speed USB / USB 2.0)
|
|
1x HDMI-in 1.4
|
|
1x HDMI-out 2.1 TMDS
|
|
1x Ethernet (RJ-45)
|
|
1x power connector
|
Left Ports
|
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only
|
|
1x headphone / microphone combo jack (3.5mm)
|
SECURITY & PRIVACY
|
|
Security Chip
|
Firmware TPM 2.0 integrated in SoC
|
Physical Locks
|
No physical locks
|
Chassis Intrusion Switch
|
No chassis intrusion switch
|
CERTIFICATIONS
|
|
Green Certifications
|
ErP Lot 3/7
|
|
GREENGUARD
|
|
RoHS / WEEE / REACH
|
Other Certifications
|
TÜV Rheinland Flicker Free
|
|
TÜV Rheinland Low Blue Light
|
|
TÜV Rheinland Ultra Low Noise
|
