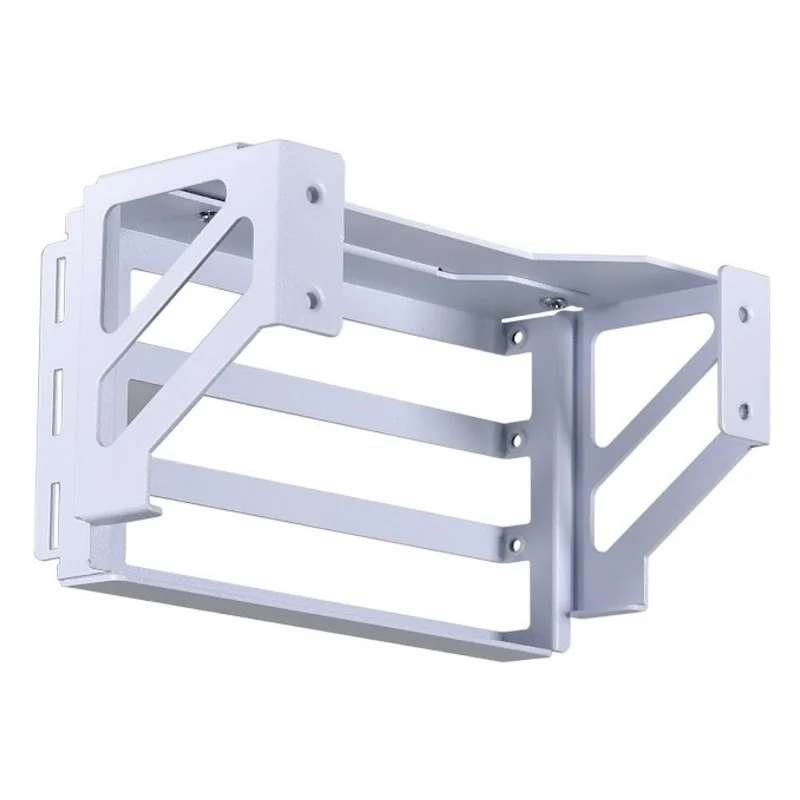

LIAN LI O11D EVO Upright GPU Kit, PCIe 4.0

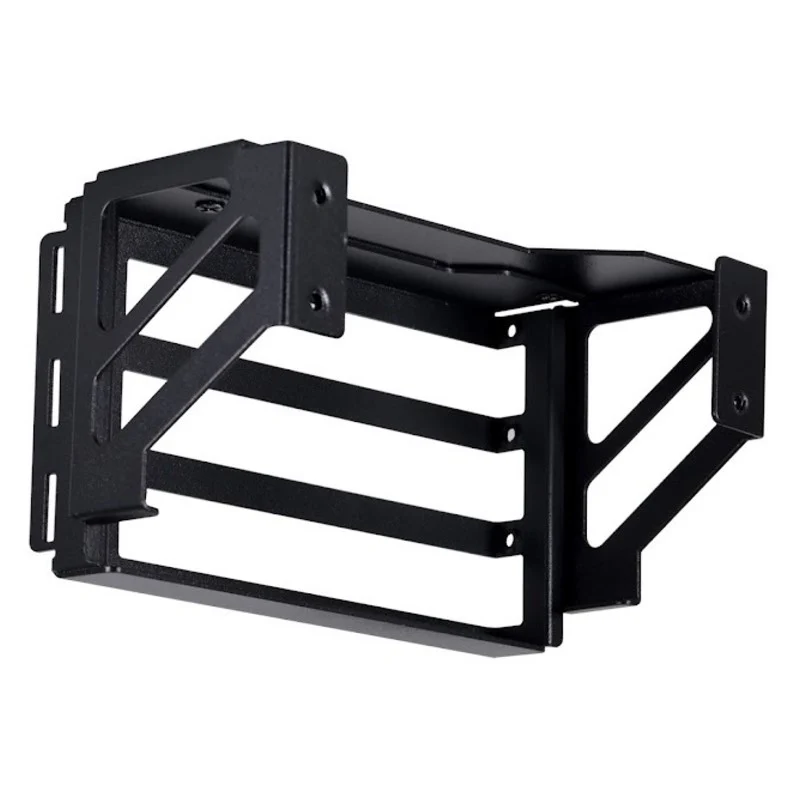

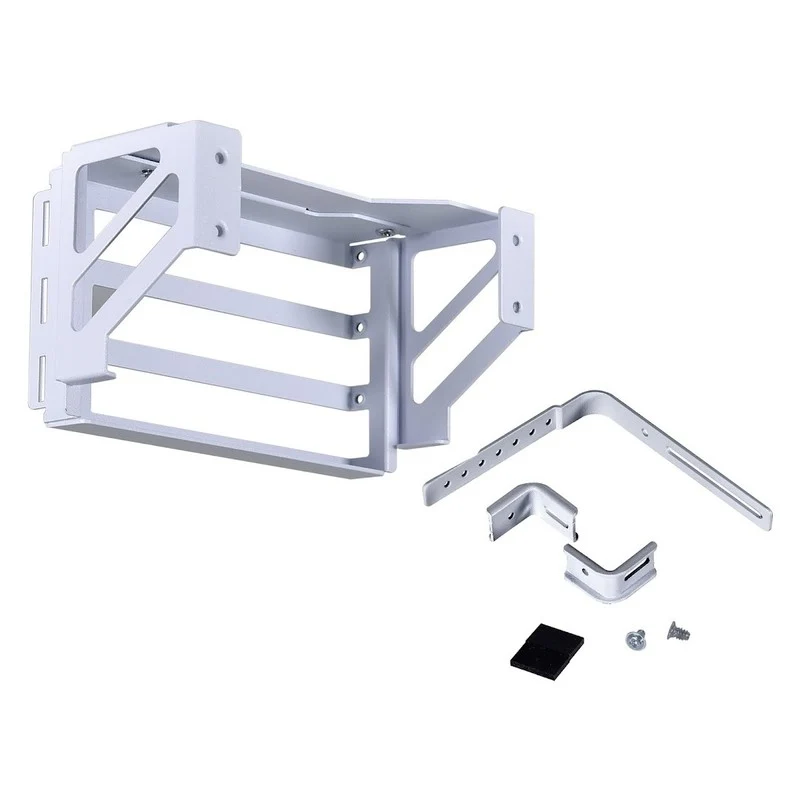

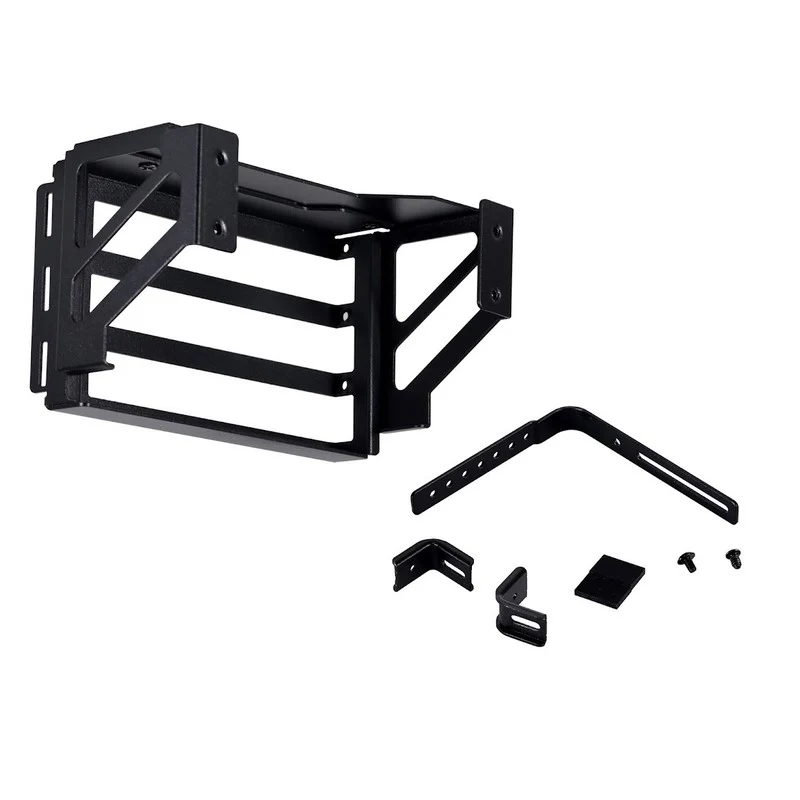

Upright GPU Kit

Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.

Normal Mode With HDD Tray Panel Scenario

Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.

Reverse Mode at Fan Bracket Scenario

Exhaust fans behind the GPU directly pull the heat out of the chamber, effectively controlling the GPU temperature.

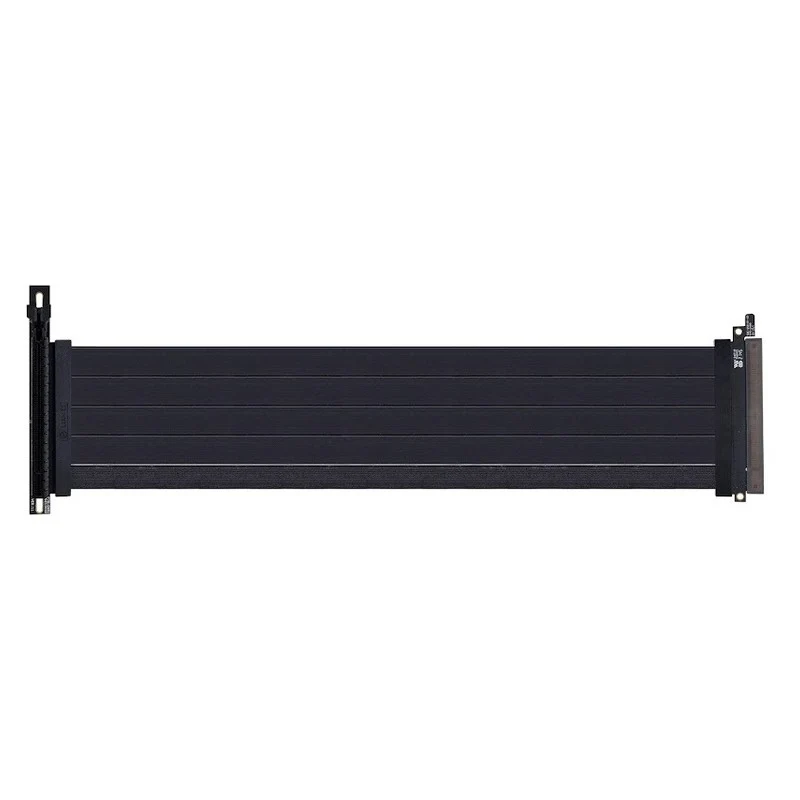

GEN 4.0 PCI-E Riser Cable

The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.

Brand

Lian

Type

GPU Kit

Color

White

Dimensions

Mounting frame: 71.8mm(L) x 128mm(D) x 67.58 mm(H)
Support frame: 70mm(L) x 81mm(D) x 10 mm(H)

Materials

1mm STEEL

Cable Interface

PCI-E X 16

Expansion Slot

3 slots

Cable Length

380mm

GPU Compatibility

Length: Maximum 355MM
Thickness: Maximum 62MM thick
Width:
HDD Tray Panel Scenario: 108MM ~ 150MM
Fan Bracket Scenario: 135MM~150MM
