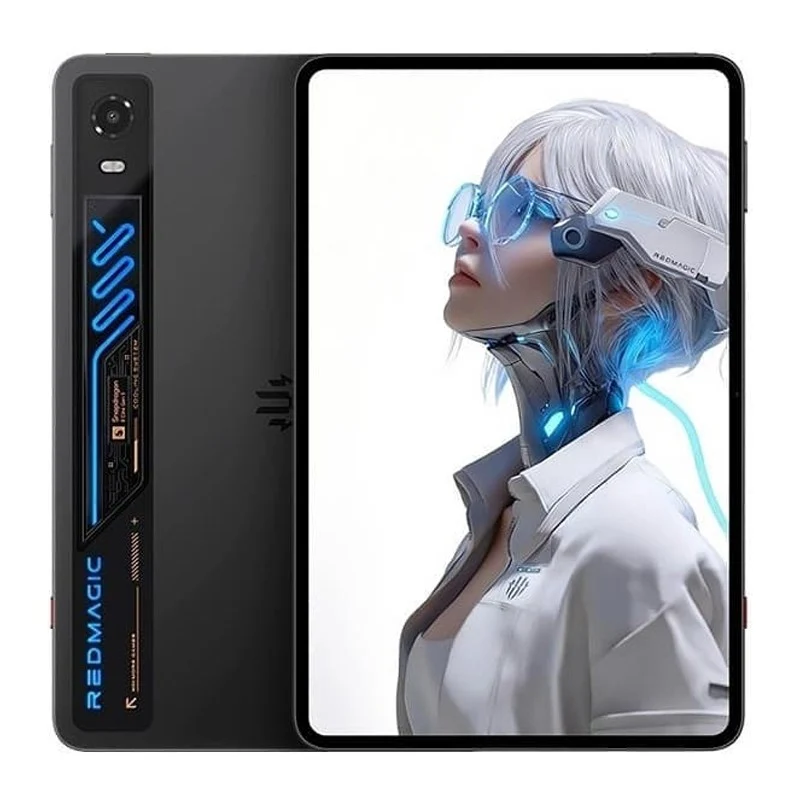

Redmagic Gaming Tablet 5 Pro (Redmagic Astra 2) 512 GB, 16 GB, 9" Wi-Fi Tablet (Chinese Version)

Redmagic Gaming Tablet 5 Pro (Redmagic Astra 2) Wi-Fi Tablet

Processor

REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) is equipped with the Qualcomm fifth-generation Snapdragon 8 Elite mobile platform, adopting TSMC’s third-generation 3nm process technology, built-in with the third-generation Qualcomm Oryon CPU, with the super core’s main frequency reaching up to 4.6GHz, and compared to the previous generation, single-core performance is improved by 20%, multi-core performance is improved by 17%, and system response speed is improved by 32%. The Adreno GPU continues to use an efficient tile-based architecture, with graphics performance improved by 23%, energy efficiency improved by 20%, and ray tracing performance improved by 25%, equipped with 18 MB of independent Adreno high-speed video memory, so frame rate performance in complex scenes is more stable.

Paired with the self-developed Red Core R4 esports chip and the CUBE Skyward Gaming Engine 3.0, it achieves intelligent performance scheduling and deep optimization for gaming scenarios, supports concurrent 2K 144 Hz super-frame super-resolution, and officially claims it can achieve “unlimited full frame rate across a hundred games” operation. Real-world testing shows that in “Delta Force” at ultra-high image quality, the average frame rate for a full match can reach 166FPS, with no obvious hot-to-the-touch phenomenon on the body.

Design

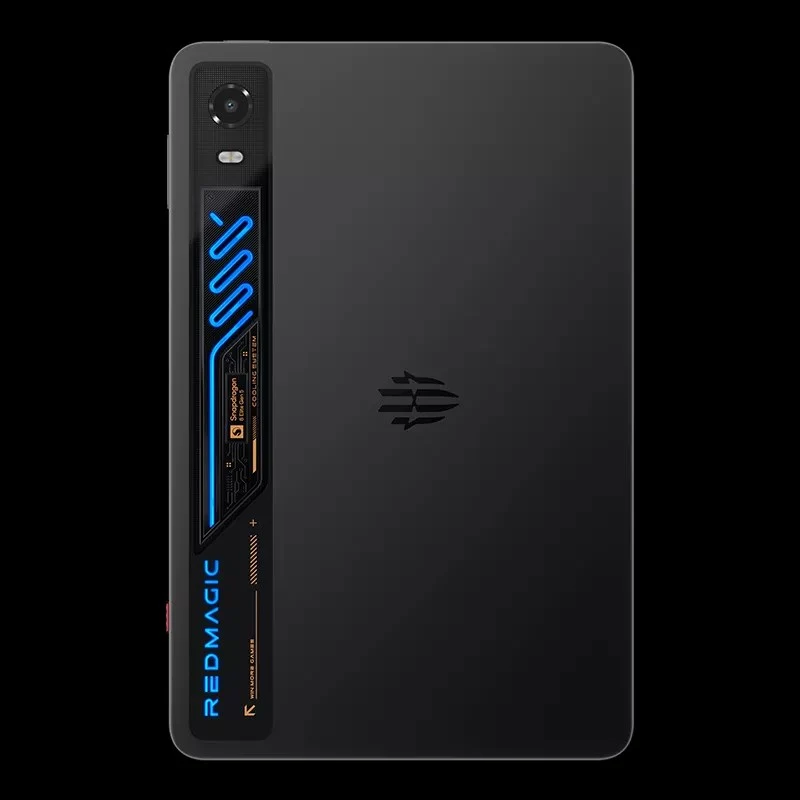

In terms of appearance design, the REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) continues the family’s signature transparent aesthetic language, and for the first time implants a PC-level water-cooling structure into a tablet body. The back of the body adopts a completely flat design with no protrusions, and through the transparent rear cover one can directly see the internal water-cooling pipelines and RGB lighting structure inside; the coolant uses the same fluorinated liquid as used in servers, possessing insulating and low-temperature-resistant properties. Red Magic precisely arranged 11 dedicated RGB light beads within a narrow space, paired with custom light-guide materials to achieve an even and soft water-cooling lighting effect; both the Deuterium Front Transparent Dark Night and Deuterium Front Transparent Silver Wing color schemes combine a sense of technology with an esports atmosphere.

Display

The screen is one of the core upgrade points of the REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) . This device is equipped with a 9.06" 2.4K resolution (2400×1504) OLED Ultra Esports Screen, industry-first adopting new X10 luminescent material, achieving the four major advantages of low power consumption, long lifespan, wide color gamut, and comfortable eye protection. The screen supports a 185 Hz ultra-high refresh rate, with response time as low as 1 ms, global peak brightness reaching 1100 nits, and local peak brightness up to 1600 nits, so the image remains clearly visible even in strong light environments.

Touch & Quality

At the touch control level, REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) is equipped with the Synaptics S3930 flagship touch control chip, supporting a 2000 Hz instantaneous touch sampling rate and 300Hz multi-finger native touch sampling rate, and is equipped with 10X super-resolution touch technology, so it can accurately recognize operations even with wet hands. Currently, several popular games such as “Crossfire: Gunslinger King,” “Dawn of Heroes,” and “Rhythm Master” have already been adapted for the 185 Hz ultra-high frame rate, while shooting blockbusters such as “Delta Force” and “Peacekeeper Elite” also support the 165 Hz high frame rate mode, showing significant advantages in image smoothness and operational responsiveness in FPS esports scenarios.

In terms of eye protection, the screen on REDMAGIC Gaming Tablet 5 Pro has passed dual certification for SGS low blue light and no flicker, is equipped with Star Shield Eye Protection Technology 2.0 and dynamic AI eye protection algorithm, and works together with ultra-high-frequency PWM dimming to effectively reduce visual fatigue during long gaming sessions.

Camera

The imaging configuration in REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) meets basic usage needs, with a front-facing 9 MP camera supporting video calls and game live-streaming, and a rear-facing 13 MP main camera capable of handling everyday code scanning and casual photography. The whole device is equipped with the REDMAGIC OS 11.5 system, deeply customized based on Android, with rich gaming functions and guaranteed system fluidity.

Battery

REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) Battery life and interface configuration have likewise been deeply optimized for gaming scenarios. The body has a built-in 8300mAh large-capacity battery, supporting 80W wired fast charging, with a standard-equipped 100W gallium nitride charger, capable of charging to nearly 50% in 20 minutes. The exclusive Bypass Charging Pro function can bypass the battery to directly power the motherboard while gaming with the device plugged in, which both reduces battery heat generation and effectively extends battery lifespan.

In terms of interfaces, it adopts REDMAGIC first dual USB-C design, with both ports supporting 80W charging, reverse power supply, and data transmission; during gaming, one port can be used for charging while the other port connects to a cooling clip-on fan, headphones, or a docking station and other peripherals, thoroughly solving the pain point of only being able to use a single port for charging while playing

Gaming

Paired with an external gamepad, keyboard and mouse, or screen casting to a large display, the tablet can freely switch between multiple forms such as a handheld console, a host console, and a PC extended screen, breaking device boundaries to achieve a full-scenario gaming experience.

Cooling

REDMAGIC Gaming Tablet 5 Pro (REDMAGIC Astra 2) is equipped with the ICE Magic Cooling heat dissipation architecture, integrating a pulse water-cooling engine, an ultra-large-area VC vapor chamber, and a liquid metal 3.0 thermal conductive layer, forming a three-dimensional heat dissipation system. The active water-cooling heat dissipation system is an industry first in the tablet field, and paired with server-grade fluorinated coolant, it can quickly carry away heat from the core area, ensuring that the fifth-generation Snapdragon 8 Elite continues to deliver full performance output under high load. The water-cooling structure has also undergone specialized leak-proof and drop-resistance testing, so daily use safety is assured.

Key Features

• Qualcomm SM8850-AC Snapdragon 8 Elite Gen 5 (3 nm)

• Water Cooling Visual Design (Illuminated)

• IP54 dust protected and water resistant (water splashes)

• 9.06", OLED, 1B colors, 185Hz, HDR, 1000 nits (typ), 1600 nits (peak), 1504 x 2400 pixels

• Rear camera: 13 MP (wide)

• Selfie camera: 9 MP (wide)

• Stereo speakers (4 speakers)

• Non-removable Li-Polymer 8300 mAh battery

Processor

Qualcomm SM8850-AC Snapdragon 8 Elite Gen 5 (3 nm)

CPU Speed

2×4.6 GHz Oryon V3 Phoenix L + 6×3.62 GHz Oryon V3 Phoenix M

No of Cores

Octa-core

GPU

Adreno 840 (1200 MHz)

Phone Operating System

Android 16, Redmagic OS 11.5

Cooling System

ICE Magic Cooling heat dissipation architecture, integrating a pulse water-cooling engine

12016 mm² ultra-large-area VC vapor chamber

Composite Liquid metal 3.0

Sensors

Fingerprint (side-mounted)

Face Unlock

Electronic compass

Gyroscope

Proximity sensor

Accelerometer

Hall sensor

Light Sensor

RGB Liquid Cooling Light Effect

Expandable Memory

No

Build

Glass front, Aluminum frame, Aluminum back

RGB light on the back

Aviation-grade Aluminum frame

Phone Display Size

9.06"

Display Type

OLED, 1B colors, 185Hz, HDR, 1000 nits (typ), 1600 nits (peak), Corning Gorilla Glass 3

Display Resolution

1504 x 2400 pixels, 16:10 ratio (~313 ppi density)

HD Type

FHD+

Phone Rear camera

13 MP, (wide)

Rear flash

LED Flash

Front camera

9 MP, f/2.2, (wide), 0.7μm

Front flash

No

Video Recording

Rear Camera: 720p 30 fps, 1080p 30 fps

Front Camera: 720p 30 fps, 1080p 30 fps

Battery Size

8300 mAh

Battery Type

Non-removable Li-Po

Charging

80W Fast Charging

Color

Eclipse Black

GPS Type

GPS, GLONASS, GALILEO, BDS

Wireless

Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band

Bluetooth

6.0, A2DP, LE

NFC Support

No

Charging Port Type

Dual USB Type-C 3.2 Gen2 & USB Type-C 2.0, Display Port, magnetic connector pins

Video supported formats

Playback: MKV, MOV, MP4, H.265(HEVC), AVI, WMV, TS, 3GP, FLV, WEBM

Recording: MP4

Audio supported formats

Playback: MP3, AAC, AAC+, WMA, AMR-NB, AMR-WB, WAV, FLAC, APE, OGG, MID, M4A, IMY, AC3, EAC3, EAC3-JOC, AC4

Recording: WAV, AAC, AMR

Loudspeaker

Hi-Fi Quad Speakers

Audio Jack

Support standard Type-C earphone

Audio

Immersive DTS-X Ultra Sound for a full range 3D audio experience

Dual Stereo 1227 Speakers

Dual 0815 motors for 4D vibration

2 built-in mics to pick up every sound
