TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point
|
Expand your business's Wi-Fi coverage and cut through high-density spaces with the EAP615-Wall AX1800 Wireless Dual-Band Gigabit Wall Plate Access Point from TP-Link. Designed to discreetly blend into most environments when mounted onto a wall junction box using the included kit, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. Both power and data are carried to the EAP615-Wall through a single cable by connecting its 802.3at PoE+ complaint Gigabit Ethernet port to a compatible network switch or router. Three Gigabit Ethernet ports are also available, one of which supports up to 12W PoE+ passthrough, to connect wired devices such as computers, VoIP phones, printers, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

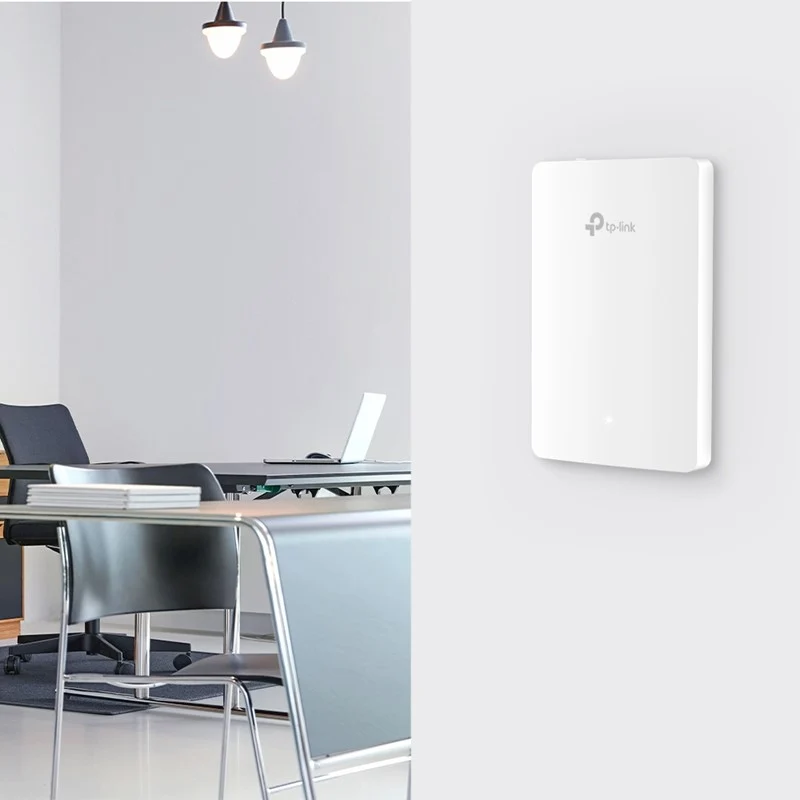

Ceiling and Wall Mountable
The EAP615-Wall features a design that blends into most environments when mounted on a wall junction box using the included kit.
Fast, Reliable Wi-Fi

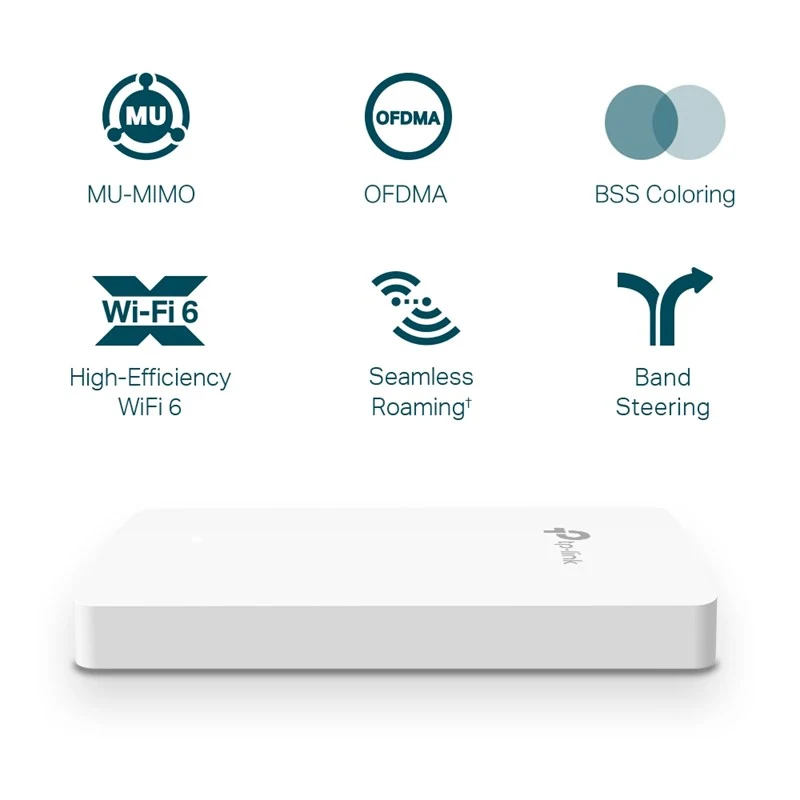

This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using beamforming, MU-MIMO, load balancing, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.
Omada Cloud
The cloud-based Omada platform allows you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.
|
Specification:
Wireless
|
|
Wi-Fi
|
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
|
MU-MIMO Support
|
2 x 2
|
Antenna Gain
|
3 to 4 dBi
|
Transmit Power
|
20 to 23 dBm
|
Supported Protocols
|
SNMPv1
|
|
SNMPv2c
|
|
SNMPv3
|
|
SSID
|
Antenna Placement
|
Internal
|
Bluetooth
|
None
|
Throughput
|
1775 Mb/s Total
|
|
5 GHz: 1201 Mb/s
|
|
2.4 GHz: 574 Mb/s
|
Interface
|
|
Inputs/Outputs
|

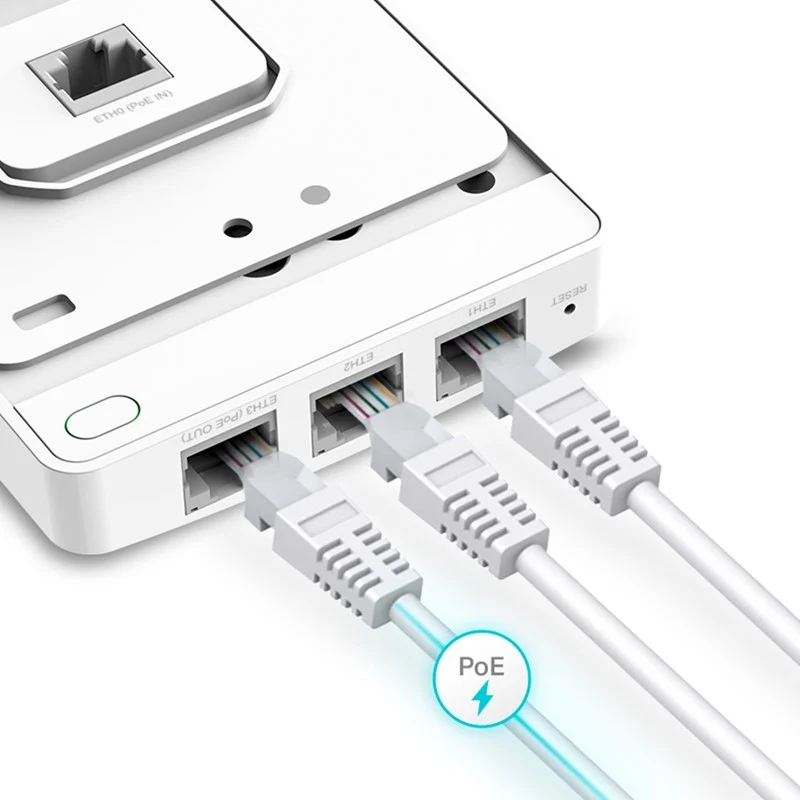

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
|
|
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE+
|
|
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
USB Sharing Support
|
No
|
Security
|
|
Guest Network Support
|
Yes
|
Wireless Security
|
WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise
|
Lock Slot
|
No
|
Management
|
|
Operation Modes
|
Access Point
|
Max SSIDs Supported
|
16
|
Hardware
|
|
Supported IEEE Standards
|
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af, 802.3at
|
Environmental
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
Storage Temperature
|
-40 to 158°F / -40 to 70°C
|
Operating Humidity
|
10 to 90%
|
Storage Humidity
|
5 to 90%
|
General
|
|
IP Rating
|
None
|
Mount Options
|
Wall, Ceiling
|
Dimensions
|
5.6 x 3.4 x 0.8" / 143 x 86 x 20 mm
|
Packaging Info
|
|
Package Weight
|
0.73 lb
|
Box Dimensions (LxWxH)
|
7.3 x 4.6 x 1.4"
|
|
